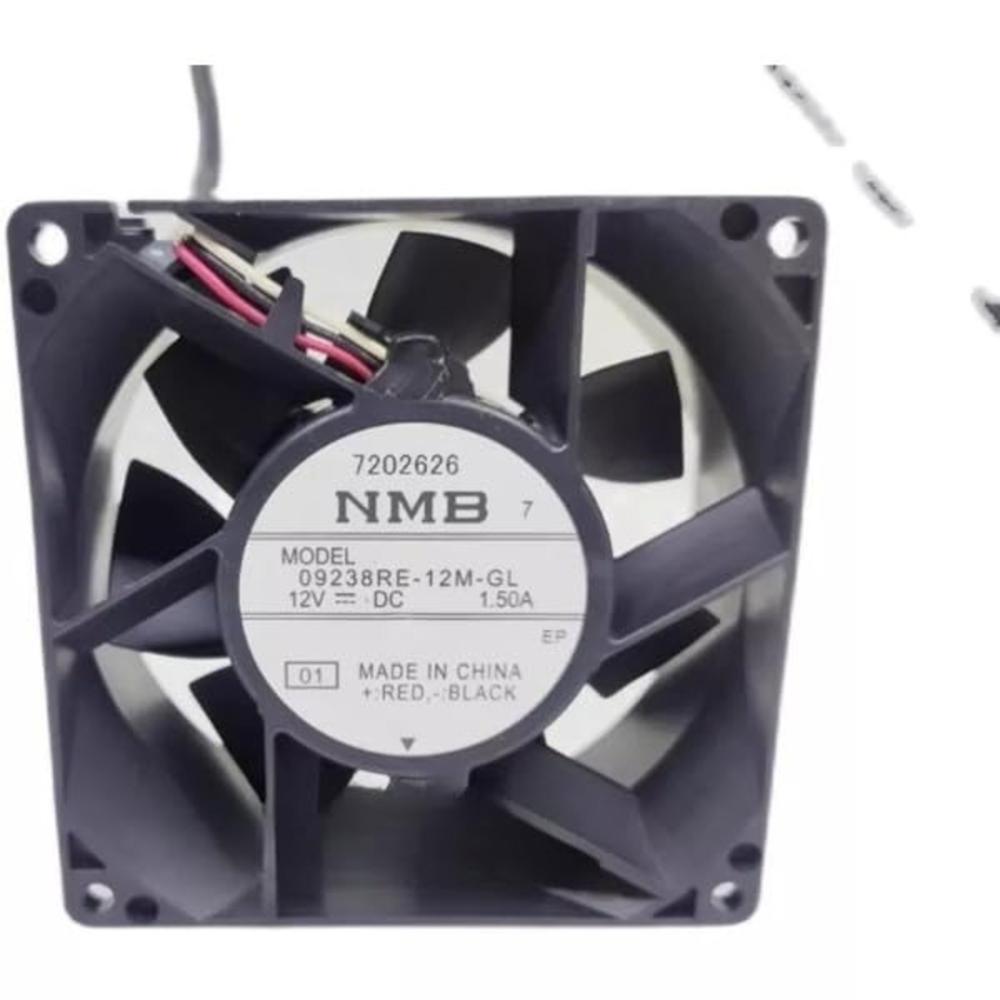

NMB 09238RE-12M-GL Axial Fan 12V-1.50A DC Brushless Air Cooling Fan 5700 RPM 9238mm 3Wire

Send Inquiry

Request To Call Back

NMB 09238RE-12M-GL Axial Fan 12V-1.50A DC Brushless Air Cooling Fan 5700 RPM 9238mm 3Wire

Name: NMB 09238RE-12M-GL Axial Fan 12V-1.50A DC Brushless Air Cooling Fan 5700 RPM 9238mm 3Wire
Brand: G3R ENTERPRISES
Price: 1999.0 INR
Availability: InStock

Price 1999.0 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

NMB 09238RE-12M-GL Axial Fan 12V-1.50A DC Brushless Air Cooling Fan 5700 RPM 9238mm 3Wire Specification

Input Voltage
10.2V-13.8V DC

Dimension (L*W*H)
92 mm x 92 mm x 38 mm

Equipment Type
DC Brushless Cooling Fan

Color
Black

Product Type
Axial Fan

Output Voltage
12V DC

Supply Voltage
12V DC

Process
Brushless Motor Assembly

Finish
Matte

Installation Guideline
Panel Mount with 4 Screws

Application
Server, Computer Case, Power Equipment Ventilation

Tolerance
0.5 mm

IP Rating
IP20

Processing
Injection Molding

Surface Treatment
UV Protected

Standard
RoHS Compliant

Technique
Precision Motor Technology

Thickness
38 mm

Design
Low Noise, High Airflow

Material
High-Quality Plastic Frame & Impeller

Usage
Electronics Air Cooling

Mounting Type
Chassis/Panel Mount

Weight
Approx. 150 g

Size
92x92x38 mm

Service Period
40,000 Hours (L10 at 40C)

Frequency
Not Applicable (DC)

Temperature
Operating: -10C to +70C

Humidity
5%-90% RH (non-condensing)

Rated Current
1.50A

Power Consumption
18W

Noise Level
52 dB(A)

Max Airflow
121 CFM

Static Pressure
15.0 mmH2O

Fan Speed
5700 RPM

Life Expectancy
Over 40,000 Hours

Dielectric Strength
500VAC for 1 minute

Storage Temperature Range
-40C to +80C

Insulation Resistance
>100M at 500VDC

Frame Material
Plastic UL94V-0

Connector Type
3-Wire (3 Pin)

Safety Approvals
CE, UL, cUL, TUV

Model Number
09238RE-12M-GL

Bearing Type
Ball Bearing

Number of Blades
7

Vibration Resistance
1.5mm amplitude, 10-55Hz, 2 hours

Lead Length
Approx. 300 mm

NMB 09238RE-12M-GL Axial Fan 12V-1.50A DC Brushless Air Cooling Fan 5700 RPM 9238mm 3Wire Trade Information

Minimum Order Quantity
10 Pieces

Supply Ability
500 Pieces Per Month

Delivery Time
7 Days

About NMB 09238RE-12M-GL Axial Fan 12V-1.50A DC Brushless Air Cooling Fan 5700 RPM 9238mm 3Wire

Experience a fresh approach to efficient cooling with the NMB 09238RE-12M-GL Axial Fan. This opulent, high-performance fan delivers a redoubtable airflow of 121 CFM at a towering 5700 RPM, ideal for demanding electronic environments. Designed for versatility, its customizable 3-wire design ensures seamless integration into server racks, computer cases, or power equipment. With a robust ball bearing system and over 40,000 hours of service life, this fan guarantees durability and reliability. Shop now and elevate your cooling solutions with premium, precision-driven engineering.

Optimal Performance for Plant Applications

The NMB 09238RE-12M-GL Axial Fan is a prime choice for plant and industrial air cooling applications. Its robust airflow and high static pressure enhance ventilation efficiency in power equipment panels. By mounting the fan securely using panel screws, users ensure stable installation and consistent performance. The advantage lies in its longevity and low-noise design, which help maintain optimal operating temperatures and reduce equipment downtime, making it an essential asset for industrial cooling needs.

FOB Port & Premium Delivery Options

Get your NMB 09238RE-12M-GL Axial Fan through convenient FOB Port shipping from India. Premium delivery times ensure your high-value order arrives swiftly, typically within 7-12 working days after quotation approval. Flexible payment terms and secure exchange options provide a seamless purchasing experience. Our team is ready to assist you through each step, from quotation to delivery, so you receive your superior cooling solution efficiently and reliably.

FAQ's of NMB 09238RE-12M-GL Axial Fan 12V-1.50A DC Brushless Air Cooling Fan 5700 RPM 9238mm 3Wire:

Q: How does the NMB 09238RE-12M-GL Axial Fan enhance cooling performance?

A: The NMB 09238RE-12M-GL delivers a powerful 121 CFM of airflow at 5700 RPM, making it highly effective for swiftly dissipating heat in electronic equipment and industrial applications.

Q: What types of equipment are best suited for this DC brushless cooling fan?

A: This fan is ideal for server racks, computer cases, power equipment panels, and various industrial or electronics air cooling applications that demand high airflow and reliability.

Q: When should the axial fan be installed for optimal benefits?

A: It should be installed during equipment setup or maintenance periods to maximize ventilation and temperature control, ensuring consistent and reliable system performance.

Q: Where should the NMB 09238RE-12M-GL be mounted for best results?

A: Mount the fan on chassis or panel surfaces using four screws as recommended, ensuring secure positioning for effective airflow and reduced vibration.

Q: What is the process for obtaining a quotation and placing an order?

A: Simply contact the supplier or trader in India to request a quotation outlining price, delivery lead time, and payment terms. Your cooling fan will be dispatched upon order confirmation and exchange agreement.

Q: What benefits come with using this opulent, precision-designed cooling fan?

A: Users benefit from outstanding longevity, reduced maintenance requirements, and robust ventilation, safeguarding sensitive equipment from overheating and extending service life.
