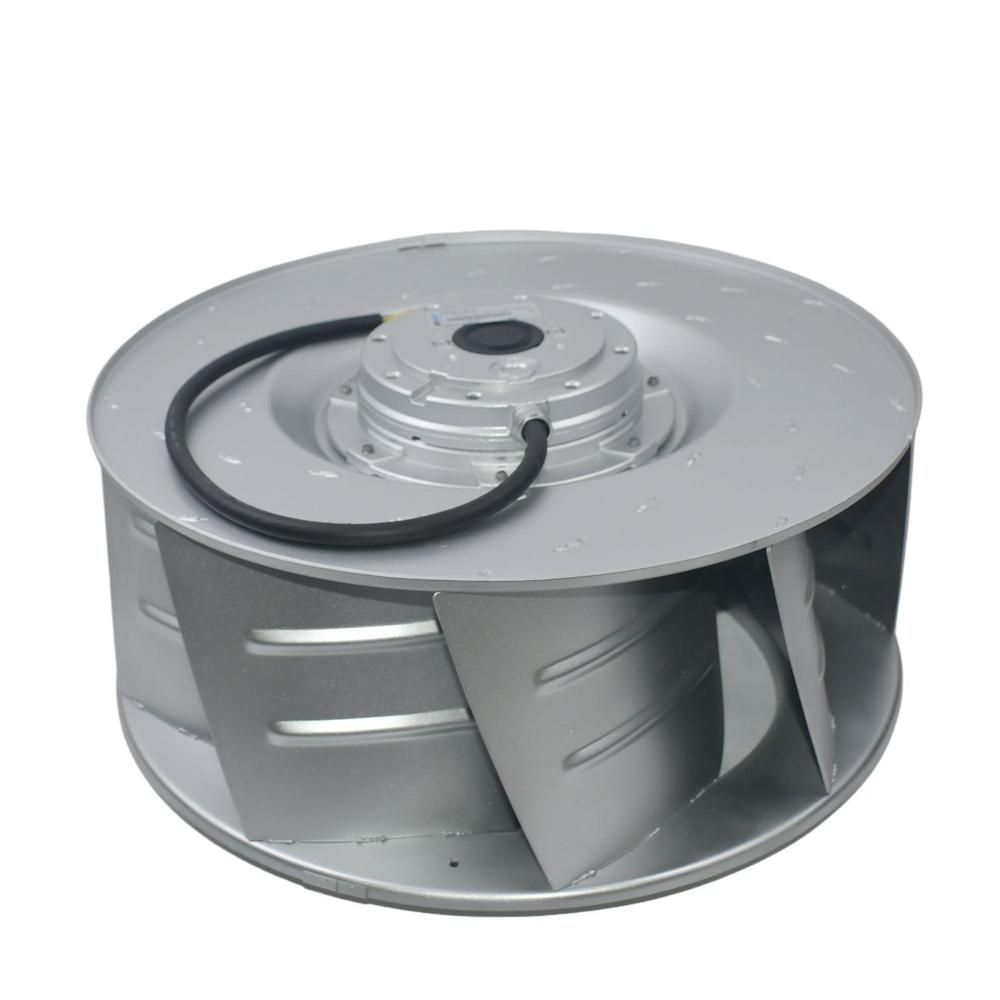

Send InquiryEBM PAPST R4D560-AQ03-01 High-Voltage Frequency Electric Stainless Steel 230-400V Centrifugal Fans
Price 9999.0 INR/ Piece
MOQ : 10 Pieces
EBM PAPST R4D560-AQ03-01 High-Voltage Frequency Electric Stainless Steel 230-400V Centrifugal Fans Specification
- Thickness
- 2.5 mm
- Frequency
- 50/60 Hz
- Mounting Type
- Plate/Panel Mounted
- Standard
- IEC/EN 60335-1
- Processing
- High-precision engineering
- Technique
- Welded and polished construction
- Temperature
- -25C to +60C
- Surface Treatment
- Anti-corrosive coating
- Weight
- 33 kg
- Input Voltage
- 230-400 V
- Output Voltage
- 230-400 V
- Design
- Backward curved blades
- Installation Guideline
- To be installed horizontally with secure mounting base, comply with manufacturer wiring diagram
- Dimension (L*W*H)
- 750 x 750 x 410 mm
- Size
- 560 mm
- Color
- Metallic Silver
- Supply Voltage
- 230-400 V AC
- Process
- Dynamically balanced impellers, anti-corrosion treated
- Material
- Stainless Steel
- Equipment Type
- High-Voltage Frequency Fan
- IP Rating
- IP54
- Application
- HVAC systems, industrial machinery, electronics cooling, air handling units
- Tolerance
- 1 mm
- Finish
- Brushed
- Service Period
- Long-term, up to 40000 hours
- Humidity
- Max. 95% RH, non-condensing
- Usage
- Industrial Ventilation and Cooling
- Product Type
- Centrifugal Fan
- Impeller Material
- Stainless steel
- Motor Type
- EC Motor, External Rotor
- Max Airflow
- Up to 5400 m3/h
- Life Expectancy
- Up to 40,000 hours L10 at 40C
- Connection Type
- Terminal box with cable gland
- Bearings
- Maintenance-free ball bearings
- Noise Level
- 68 dB(A) at 1 m
- Protection
- Thermal overload protection
- Compliance
- CE, RoHS
- Power Consumption
- Up to 820 W
- Speed Range
- 1200-1400 RPM
- Fan Type
- Single inlet, backward curved centrifugal
- Control
- 0-10V or PWM speed control
EBM PAPST R4D560-AQ03-01 High-Voltage Frequency Electric Stainless Steel 230-400V Centrifugal Fans Trade Information
- Minimum Order Quantity
- 10 Pieces
- Supply Ability
- 500 Pieces Per Month
- Delivery Time
- 7 Days
About EBM PAPST R4D560-AQ03-01 High-Voltage Frequency Electric Stainless Steel 230-400V Centrifugal Fans
Unlock monumental performance in industrial ventilation with the EBM PAPST R4D560-AQ03-01 High-Voltage Frequency Electric Stainless Steel Centrifugal Fans. Engineered with astonishing precision, these fans feature a robust stainless steel build, dynamically balanced backward curved impellers, and maintenance-free ball bearings-all designed for spectacular reliability. Spotlight features include EC motor technology, up to 820 W power, and a max airflow of 5400 m3/h. Its IP54, CE, and RoHS compliance, along with brushed anti-corrosive finish, make this equipment the ultimate solution for demanding HVAC, machinery, or electronics cooling.
Competitive Advantages & Application Scope
The EBM PAPST R4D560-AQ03-01 fan delivers a competitive edge with maintenance-free ball bearings, thermal overload protection, and a dynamically balanced impeller for vibration-free operation. Its stainless steel, anti-corrosive construction allows installation in rigorous industrial and HVAC environments. Designed for long-term service-up to 40,000 hours-this fan ensures consistent performance in electronics cooling, air handling, and industrial ventilation, meeting stringent IEC/EN 60335-1 standards for safety and durability.
Premium Delivery & Market Coverage
Experience premium transport services across India with the EBM PAPST R4D560-AQ03-01. This fan is delivered safely via trusted logistics from major FOB ports. Flexible payment terms cater to both bulk and specialized orders. Serving the main domestic market, the product arrives expertly handled, ensuring its pristine metallic silver finish and welded, polished construction are uncompromised. Choose EBM PAPST for a reliable, high-performance ventilation solution meeting the highest market expectations.
Competitive Advantages & Application Scope
The EBM PAPST R4D560-AQ03-01 fan delivers a competitive edge with maintenance-free ball bearings, thermal overload protection, and a dynamically balanced impeller for vibration-free operation. Its stainless steel, anti-corrosive construction allows installation in rigorous industrial and HVAC environments. Designed for long-term service-up to 40,000 hours-this fan ensures consistent performance in electronics cooling, air handling, and industrial ventilation, meeting stringent IEC/EN 60335-1 standards for safety and durability.
Premium Delivery & Market Coverage
Experience premium transport services across India with the EBM PAPST R4D560-AQ03-01. This fan is delivered safely via trusted logistics from major FOB ports. Flexible payment terms cater to both bulk and specialized orders. Serving the main domestic market, the product arrives expertly handled, ensuring its pristine metallic silver finish and welded, polished construction are uncompromised. Choose EBM PAPST for a reliable, high-performance ventilation solution meeting the highest market expectations.
FAQ's of EBM PAPST R4D560-AQ03-01 High-Voltage Frequency Electric Stainless Steel 230-400V Centrifugal Fans:
Q: How should the EBM PAPST R4D560-AQ03-01 be installed for optimal performance?
A: The fan should be installed horizontally on a secure mounting base according to the manufacturer's wiring diagram to ensure stability and optimal airflow.Q: What application surfaces is the R4D560-AQ03-01 fan suitable for?
A: It excels in HVAC systems, industrial machinery, electronics cooling, and air handling units, performing well in both commercial and industrial environments.Q: When does the maintenance-free bearing need replacement or servicing?
A: The ball bearings are designed to be maintenance-free and typically last up to 40,000 hours of operation at 40C, minimizing servicing requirements.Q: Where can this fan be used in terms of environment and temperature?
A: This fan operates efficiently in environments with temperatures from -25C to +60C and humidity up to 95% RH, non-condensing, making it suitable for demanding industrial settings.Q: What benefits does the impeller's dynamic balancing provide?
A: Dynamic balancing ensures smoother operation, reduced noise levels, less vibration, and longer service life, contributing to reliable, quiet, and efficient airflow.Q: How can the speed of the fan be controlled?
A: The fan offers 0-10V or PWM speed control, allowing precise adjustment to match system requirements and save energy during operation.
